Six-sided drilling is essential for CNC operations.

One-stop high-efficiency processing, empowering the intelligent transformation of furniture manufacturing
✅️Six-sided machining in one setup—eliminate secondary positioning Utilizing multi-spindle collaborative design, it can simultaneously complete drilling, milling, slotting, chamfering, and other processes on the front, back, and all four sides of a panel in a single setup. This eliminates the need for repeated flipping and repositioning, significantly reducing clamping time and avoiding positioning errors. Compared to traditional equipment, processing efficiency increases by over 50%, enabling effortless completion of massive panel processing tasks within a single shift.

✅️High-precision core configuration ensures machining quality Equipped with imported high-precision linear guides and servo drive systems, it achieves exceptional positioning accuracy, with drilling perpendicularity and slot flatness far exceeding industry standards. Featuring a high-quality spindle that delivers stable rotational speeds and powerful cutting performance, it ensures smooth, burr-free processing across diverse materials including MDF, particleboard, plywood, and solid wood, thereby enhancing product value. ✅️ Intelligent control system, simple and easy to operate Utilizing our proprietary intelligent control system with a visual interface, parameter settings are intuitive and convenient. The built-in comprehensive machining process database enables rapid retrieval of processing parameters for various sheet materials and specifications, allowing even novices to master operations quickly. Additionally, features such as self-diagnostic fault detection, processing count tracking, and parameter memory reduce operational costs and lower the skill threshold for personnel.



1 Core  configuration

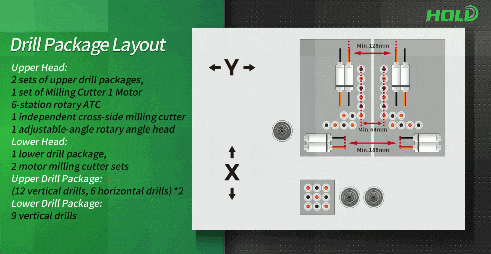

1 Drill Package Layout

• Upper Tooling Head: 2 sets of upper drill packages, 1 set of motor milling cutters, 6-station rotary tool magazine + 1 independent cross-side milling cutter + 1 adjustable-angle rotary angle head;

• Lower Drill Head: 1 set of lower drill package, 2 sets of motor milling cutters;

• Drill Set: (12 vertical drills, 6 horizontal drills) *2 • Drill package: 9 vertical drills;

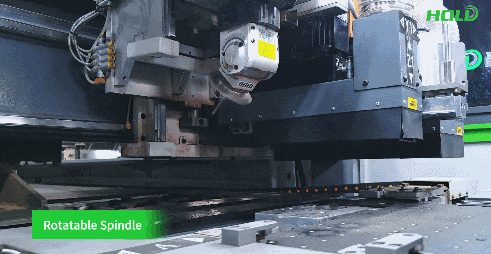

2 Rotatable Spindle

• Featuring an adjustable-angle rotating head, it can perform beveled laminating processes and more.

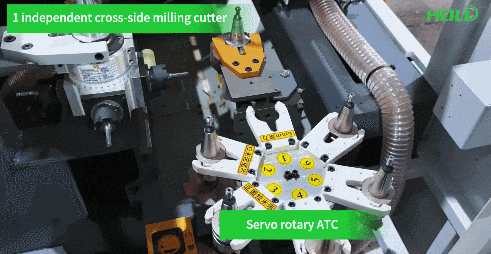

3 Servo rotary ATC

• Servo-driven disc tool magazine + one independent cross-side milling cutter + one 45° angle cutter, meeting diverse machining requirements.

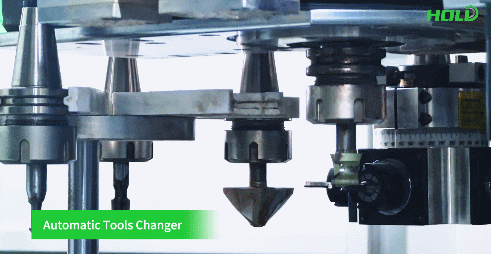

4 Automatic Tools Changer

• Suitable for mass production and complex machining processes.

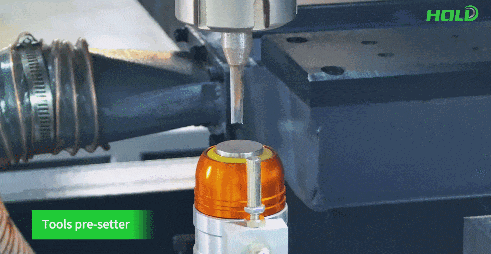

5 Tools pre-setter • One-touch rapid tool change ensures machining precision.


6 Automatic Gear Calibration Function

• Ensure gear transmission operates at a uniform, smooth, and vibration-free pace, with the cutter shaft/spindle running along an absolutely smooth trajectory to deliver perfectly flat cutting surfaces.


2 Machine Highlightsn

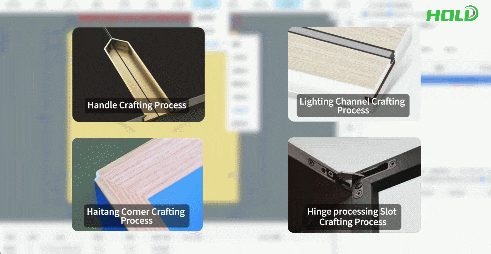

7 Multiple manufacturing processes available

• Can process light channel grooves, LED strip channels, hidden hinge slots, concealed handle slots, and 45° Laminate edges.

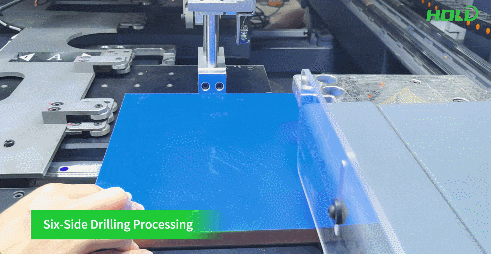

8 Six-Side Drilling processing


9 45°beveled lamello Processing

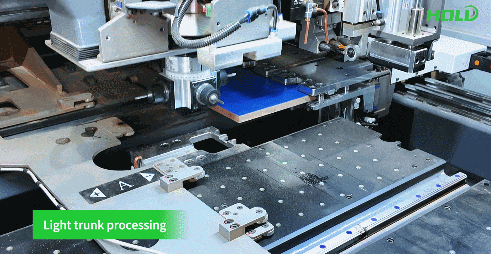

10 Light trunk processing

11 Bullhorn handle Slot Processing

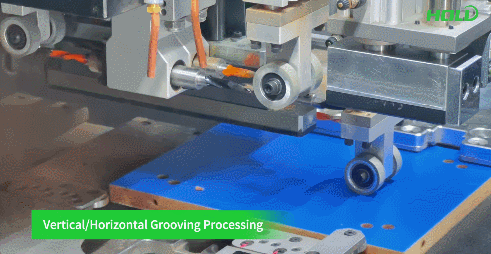

12   Vertical/Horizontal Grooving Processing
