Intelligent Laser Edge Banding Machine:S330
The S330, as the latest powerhouse addition to Haode's edge banding machine lineup, has been meticulously refined in every detail—from configuration to craftsmanship, from intelligence to durability. It precisely addresses industry pain points and adapts to diverse production scenarios, effortlessly handling everything from high-end custom furniture and standard cabinetry to specialized craftsmanship requirements. ✅️Precision Craftsmanship, Empowering New Production HOLDS330 Laser Edge Banding Machine features an integrated steel beam frame with precision-machined rails, delivering accuracy far surpassing traditional split-rail designs. Every structural element embodies the robust quality of heavy-duty equipment. From core components to meticulous craftsmanship, from intelligent controls to durable performance, the S330 consistently prioritizes “Stability, Precision, Speed, and Efficiency.” It meets the exacting quality demands of high-end custom furniture while also fulfilling the efficiency requirements of routine production. This empowers furniture manufacturers to enhance product competitiveness, reduce production costs, and seize a competitive edge in the industry. ✅️Self-developed laser technology, unlocking seamless edge-banding aesthetics HOLD S330 features an independently developed laser system with a 3kW rectangular spot design. Eliminating the need for adhesives, it melts the functional layer on the back of the edging tape using a high-energy laser beam, achieving molecular-level bonding with the substrate. This delivers exceptional bonding strength and outstanding weather resistance, creating a truly seamless edge finish. Visually integrated and smooth to the touch, it perfectly meets the quality demands of high-end custom furniture. 1 Effect Display Laser edge sealing: High efficiency and high aesthetics
1

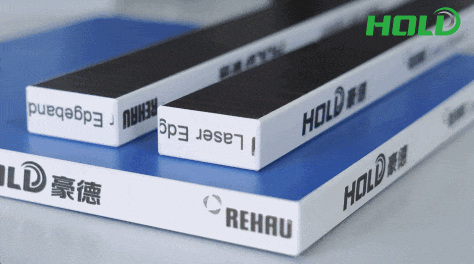

Finished Product Display
2
Core configuration
2

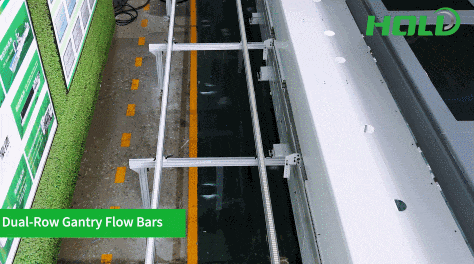

Duai-Row Gantry Flow Bars
3

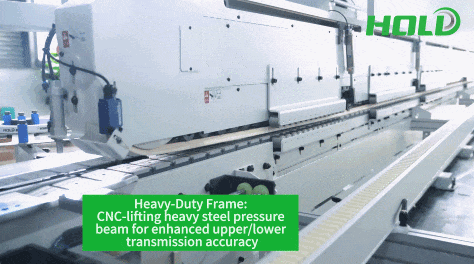

Heavy-Duty Frame
-
Ensure the stability of the beam under high-intensity operation.
4

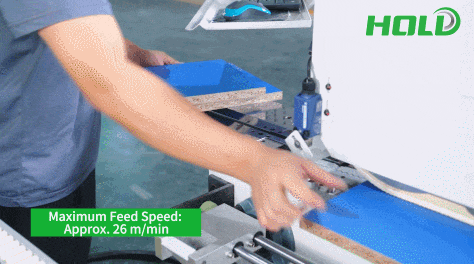

Maximum Feed Speed
-
Maximum Feed Speed Approx 26m/min
5

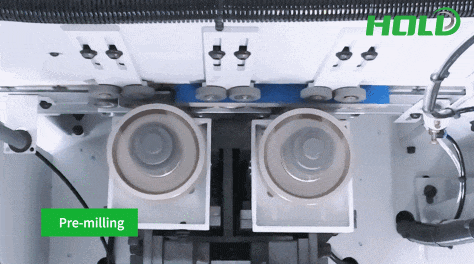

Pre-milling
6

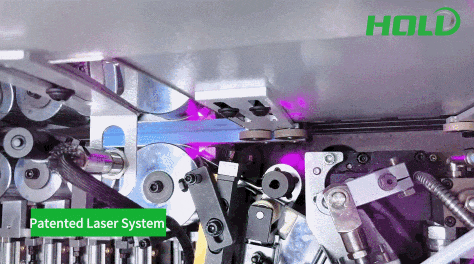

Patented laser system
-
Laser system developed by HOLD, through the North and South winter and summer test, fully mastered the application of laser technology in the sealing machine.
7

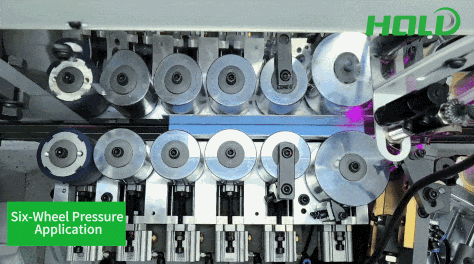

Six-Wheel Pressure Application
-
Steel wheels + steel wheels with glue removal scraper + silicone wheels. Each steel wheel is equipped with a glue removal scraper to quickly remove glue from the rollers; the silicone wheels make the rollers more secure.
8

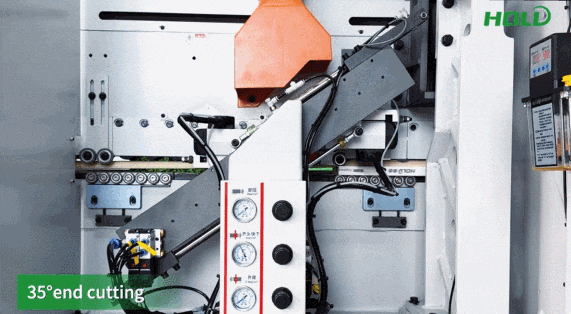

Two 35°end cutting
9

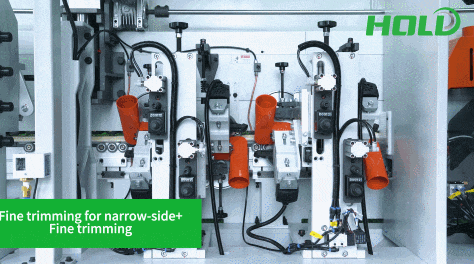

Fine Trimming unit for narrow edge+Fine trimming
-
Steel widening trimming riser, thickness of edging tape with digital display;
-
Trim the excess edging tape protruding from the upper and lower planes of the boards on the upper and lower sides of the edging tape into an R-angle shape, so that the upper and lower edges of the edging tape and the upper and lower surfaces of the boards are flush and smooth.
10

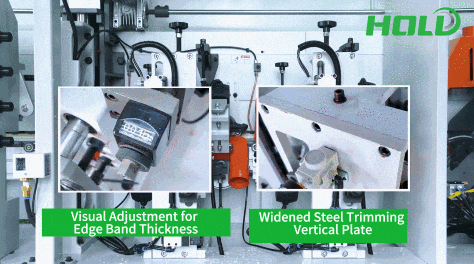

Visuai Adjustment for Edge Band Thickness
11

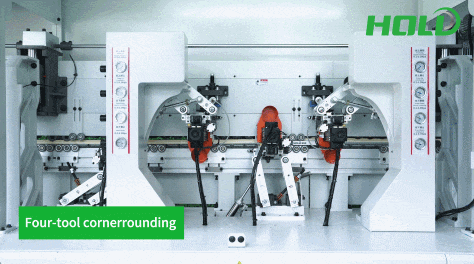

Four-tool cornerrounding
12

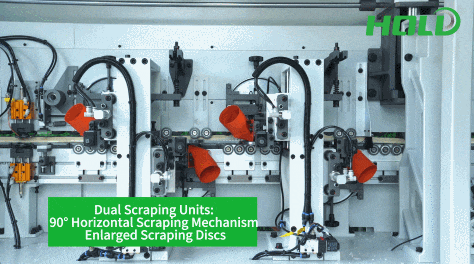

Dual Scraping Units
-
90 degree horizontal scraping mechanism, enlarged disc, slider in and out adjustment, smoother adjustment;
-
For thick and thin two thicknesses of edge banding, one key quick switch, perfect removal of knife marks left by the trimming knife and finishing R rounded corners.
13
Patented Technology
-

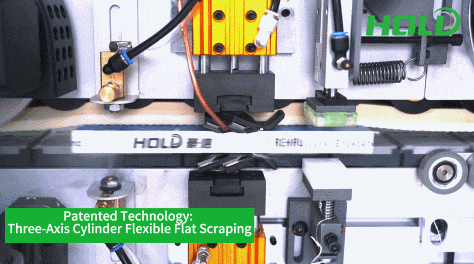

Patented Technology：Three-Axis Cylinder Flexible Flat Scraping
14

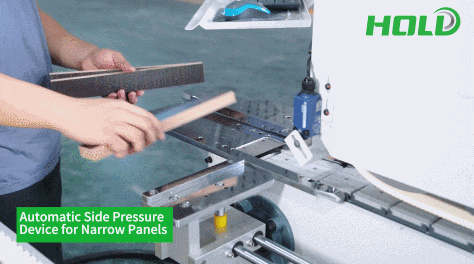

Automatic side Pressre Device Narrow Panels
15

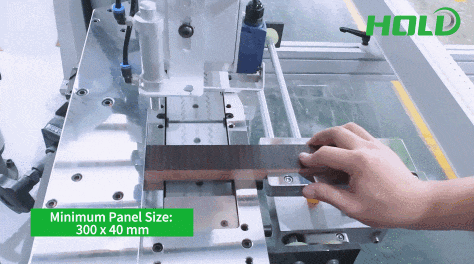

Minimum PanelSize：300×40mm
16

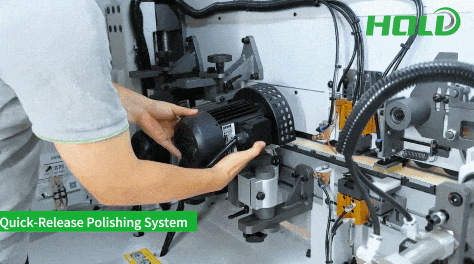

Quick-Release Pollshing System
