HOLD HD827J Redefines Edge Banding Precision.

Hardcore Edge Banding Machine, Designed for Full-Process Skeleton Door Manufacturing
✅️Heavy-duty chassis foundation, frame door edging rock-solid Heavy-duty frame + steel pressure beam design, CNC precision machined for maximum tabletop flatness. Ensures no wobbling or deformation during long-term high-intensity operation, laying a solid foundation for edge banding on hollow-core doors. Paired with a CNC-controlled lifting pressure beam, it delivers uniform and stable material clamping with pinpoint positioning accuracy. This setup not only reduces manual labor intensity but also prevents edge curling and adhesive overflow during hollow-core door edge banding, achieving both efficiency and precision.
✅️HOLD Edge Banding Machine × Skeleton Doors × Song Dynasty Aesthetics｜Crafting Oriental Minimalist Elegance Through Precision Edge Banding Skeleton doors, defined by ultra-narrow lines and three-dimensional grooves, perfectly embody the minimalist aesthetic core of Song Dynasty charm. Yet the true character of a door often lies in its edge banding. HOLD Edge Banding Machines empower Skeletal Door craftsmanship through precision manufacturing: pre-milling trimming, precise adhesive application, heavy-duty pressing, and seamless bonding effortlessly handle ultra-narrow frames and irregular grooves. Eliminating chipped edges, visible glue lines, and imperfections, every line remains crisp and clean, every corner as smooth as jade. Where industrial precision meets Eastern aesthetics, Haode edge banding machines elevate skeletal doors beyond minimalist form. They embody the enduring elegance and quality of Song Dynasty craftsmanship—a beauty that stands up to close inspection.

1 Core Process
1 Skeleton Gate Craftsmanship


2 Effect Demonstration

2 Core  configuration

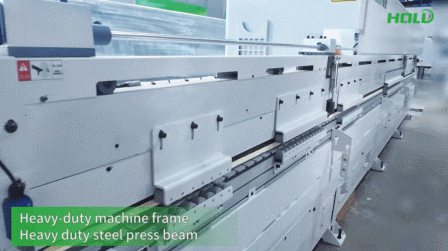

3 Heavy-duty frame + heavy-duty steel pressure beam


4 Fully Intelligent Control System • Real-time data transmission for monitoring equipment status.

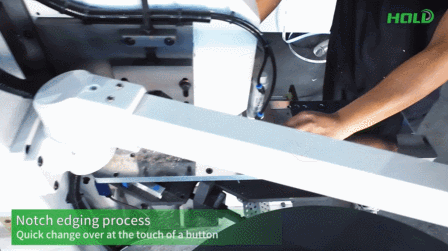

5 Notched edge banding process


• One-touch screen switching enables both standard edge banding and notched edge banding processes.

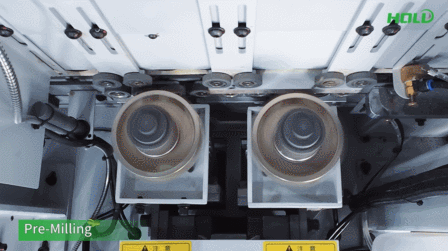

6 Pre-Milling

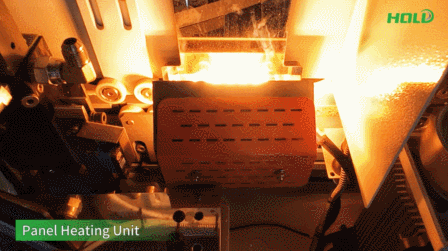

7 Panel Heating Unit

• When temperatures are low, preheat the surface of the panel to be glued before applying adhesive to ensure stronger bonding and a more seamless edge finish.

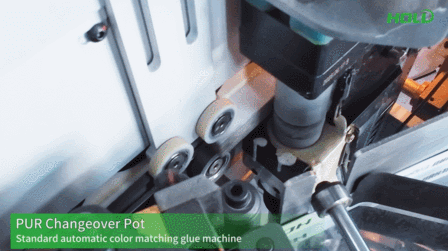

8 PUR Changeover Pot

• The no-clean glue pot offers easier, simpler, and faster cleaning, suitable for selecting two different colors of glue.

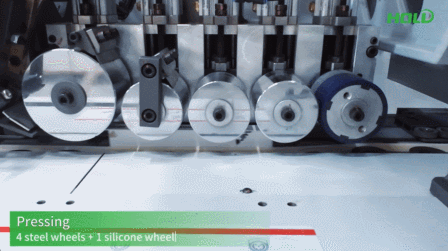

9 Pressing

• 4 steel wheels + adhesive-cleaning blade assembly + 1 silicone wheel configuration. Each steel wheel is equipped with an adhesive-cleaning blade for rapid removal of glue adhering to the pressure-applying wheels; the silicone wheel ensures a more secure bond.
10 End cutting


11 Rough Trimming + Pneumatic Fine Trimming Visual adjustment;

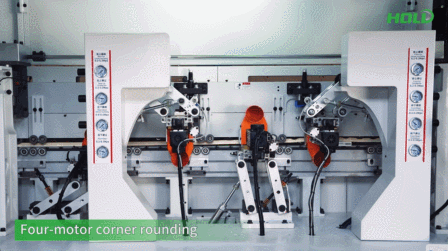

12 Four-motor corner rounding

• New tracking mechanism with reinforced support plate, featuring a 4-motor tracking contouring system for enhanced precision and stability. Edge banding with rounded corners (chamfering) ensures smooth, aesthetically pleasing finishes on all four edges of the panels.

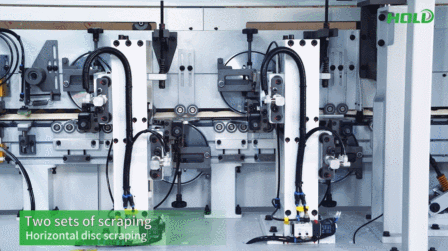

13 Two sets of cutter scraping

• Visual adjustment; 90-degree horizontal scraping mechanism with enlarged disc; One-touch quick switching for both thick and thin edge banding materials; Perfectly removes knife marks left by trimming knives and refines R-radius corners.

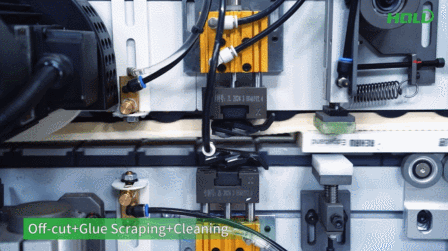

14 Off-cut+Glue Scraping+Cleaning

• Thread Cutting Device: Prevents scraped edge banding from interfering with the flat scraper's operation or directly wrapping around the polishing unit, which could cause jamming and motor burnout.  • Patented Technology Flexible Flat Scraper: Removes excess hot melt adhesive from the workpiece surface.

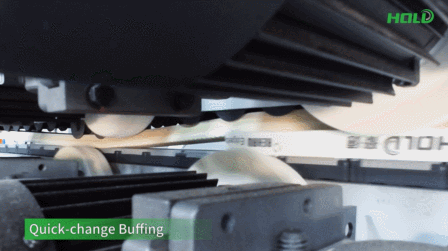

15 Quick-change Buffing

• Simplified maintenance eliminates excess adhesive residue, ensuring smoother, cleaner edges and surfaces for diverse panel colors and adhesives.

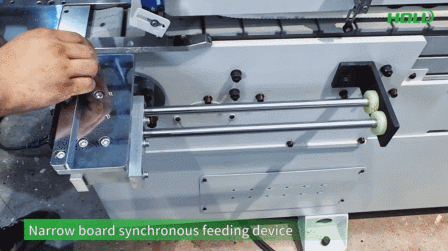

16 Narrow board synchronous feeding device


17 Minimum working width of workpiece

• Minimum working width of workpiece:40mm
18 Permanent magnet synchronous motor

• Higher efficiency, faster response times, effortlessly matches high conveying speeds, and delivers lower energy consumption during long-term operation.
