Heavy-Duty Fully Automatic Edge Banding Machine: V322

7mm thin boards and 40mm narrow boards can be edged; dual-process technology ensures stable, fast and precise edging

Competition in the bespoke furniture industry is intensifying, and the precision, reliability and efficiency of edge-banding processes directly determine a product’s competitiveness and production efficiency. Haode has established a strong presence in the woodworking machinery sector, utilising cutting-edge technological advancements to perfect every detail. By equipping furniture manufacturers with specialist machinery, we are unlocking a new era of high-efficiency edge-banding!

✅️Versatile craftsmanship, effortlessly handling complex scenarios

Flexibly adapts to diverse production requirements, catering to both standard and specialised edging scenarios, with straightforward and hassle-free operation:

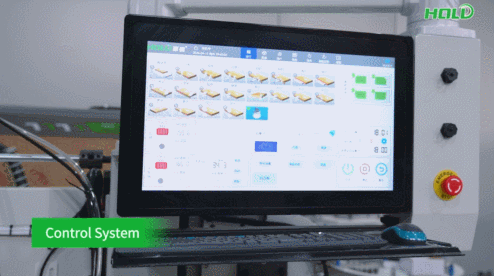

The notch avoidance design precisely adapts to diverse edging requirements, enabling efficient completion of standard edging tasks whilst effortlessly handling notch edging processes. There is no need for cumbersome manual adjustments; modes can be switched quickly with a single touch on the screen. Operation is convenient and intuitive, significantly reducing changeover time. This meets the production demands of custom furniture involving multiple specifications and processes, effectively enhancing production continuity.

Frame door edging process: Tailored to the structural characteristics of frame doors, it precisely conforms to the contours of the door’s edges and corners. During edging, force is distributed evenly and the fit is tight, effectively eliminating common issues such as chipped edges, glue overflow and warped edges. The lines are smooth and flowing, not only improving edging efficiency but also highlighting the product’s premium quality, meeting the stringent requirements of high-end furniture production.

✅️A robust foundation built on heavy-duty construction ensures maximum stability

Equipment stability is key to ensuring edge-banding precision. The heavy-duty structural design eliminates the risk of deformation and vibration at source, ensuring precision and control even during long-term, high-load operation:

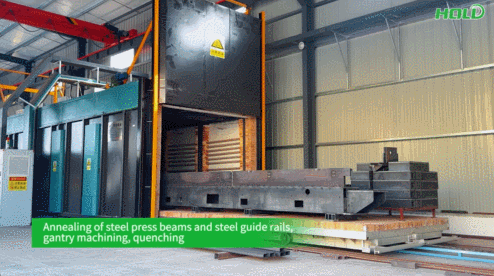

The steel guide rails are integrally moulded with the machine frame, featuring a continuous, seamless design without any joints or gaps, resulting in exceptional rigidity. Combined with a specially designed heavy-duty ‘U’-shaped base, the entire guide rail assembly connects seamlessly to the frame. The structure undergoes an annealing process to effectively eliminate internal metal stresses, whilst the curved sections on both sides of the guide rails and the flat surfaces are treated with high-frequency quenching, delivering dual enhancements in both hardness and stability.

The gauge holder is integrated with the frame and undergoes the same annealing treatment, ensuring precise positioning and resistance to deformation. This further guarantees edge-banding accuracy and minimises errors caused by manual adjustment.
