HOLD Front feeding panel saw:HP330

Enabling Precise and Efficient Production for Whole-Home Customization In industries such as whole-home customization and aluminum honeycomb panel processing, cutting precision, production efficiency, and equipment stability directly determine a factory’s production capacity and product quality. The Haode CNC HP330 electronic saw combines precision engineering, intelligent systems, and powerful performance to provide a comprehensive solution to cutting challenges, helping businesses improve quality, boost efficiency, and achieve stable mass production.
✅️Precise material feeding and positioning ensure a more solid foundation for cutting The HP330 is equipped with an 1800mm extended backgauge, ensuring stable and secure positioning to guarantee loading accuracy from the outset; The first air-cushion table spans 2800mm, easily accommodating large-format panels and ensuring smooth, obstruction-free loading, allowing it to handle the processing of panels of all sizes with ease. ✅️Powerful dual-servo drive and intelligent cutting deliver a 25% increase in efficiency The saw carriage and feed shaft are both equipped with servo motors and rack-and-pinion drives, ensuring stable power and rapid response. Maximum speeds of up to 100 m/min are achievable during sawing, return strokes, and material feeding/unloading, ensuring smooth operation even at high speeds. Paired with an intelligent lifting crossbeam, the system automatically adjusts its height based on panel thickness, reducing wasted cylinder stroke. This directly boosts overall cutting efficiency by 25%, making high-volume production more efficient and hassle-free. ✅️Precision-engineered, rugged construction; perfectly cut, durable, and resistant to warping The work surface features a standard chrome-plated and polished steel plate finish, providing a smooth and fine texture that prevents scratches on materials during cutting. It is compatible with both wood and aluminum honeycomb panels, meeting the processing needs of a wide range of materials. The saw carriage is precision-machined as a single unit after steel plate welding. It features a four-point load-bearing design that distributes force evenly during cutting, ensuring a flat and precise cut surface; The pressure beam is formed by bending and welding steel plates and undergoes comprehensive precision finishing, providing excellent resistance to deformation. Even when cutting multiple stacked sheets, the cutting results remain stable and consistent.

1 Core  configuration

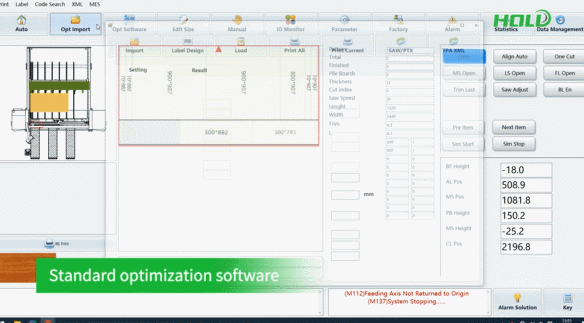

1 standard optimization software

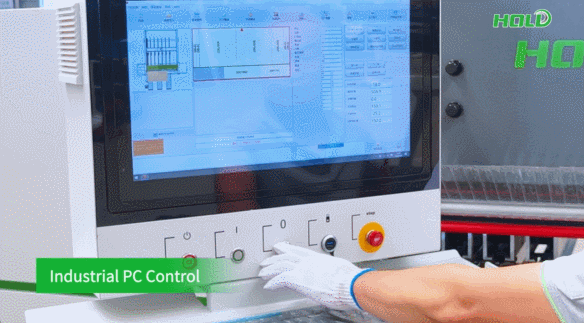

2 Industrial PC Control



• Integrated touch-screen industrial control PC, user-friendly and easy to operate.

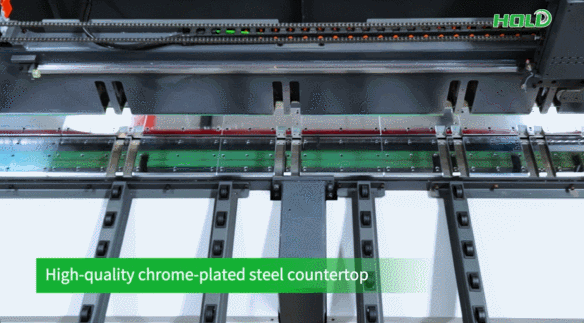

3 High-quality Chrome-plated steel countertop

• Table surface made of chrome-plated steel plate: Ensures excellent cutting results without scratching the panel. Special design makes it suitable for both wood panels and aluminum honeycomb panels.
4 Rubber-Coated Dual-Finger Grippers

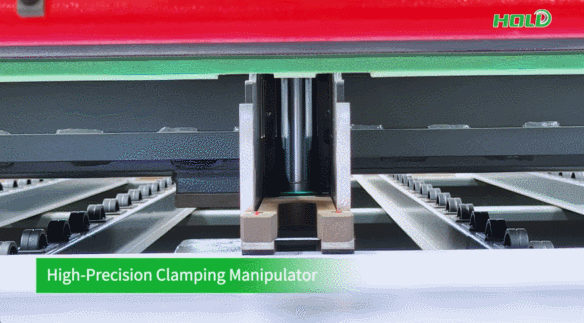

5 High-Precision Clamping Manipulator

• Servo-driven, high positioning accuracy, stable and efficient.

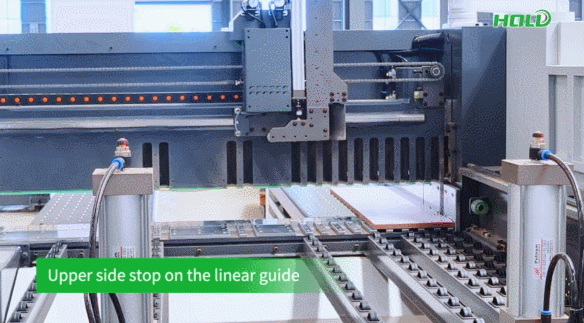

6 Upper Side Sup on the linear guide

• When the saw carriage is in operation, the side support operates independently without affecting cutting efficiency. This addresses the issue of the electronic saw’s side support system maintaining continuous contact with the board throughout the entire process without compromising the saw carriage’s cutting efficiency.

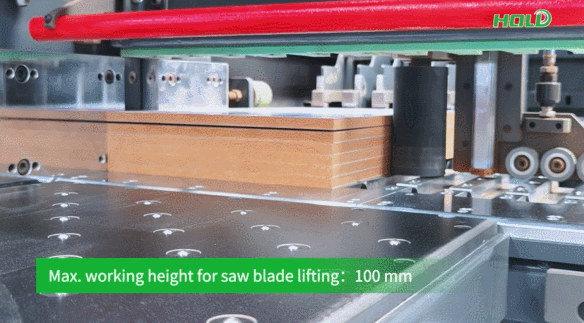

7 Max.working height for saw blade lifting

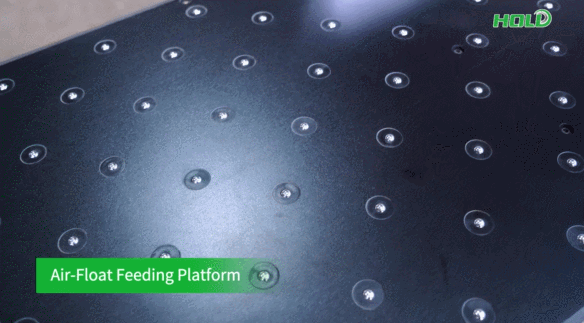

8 Air-Float Feeding Platform

• The first feeding station features an extended design; this steel-ball air-cushioned feeding platform ensures effortless and convenient synchronous feeding.

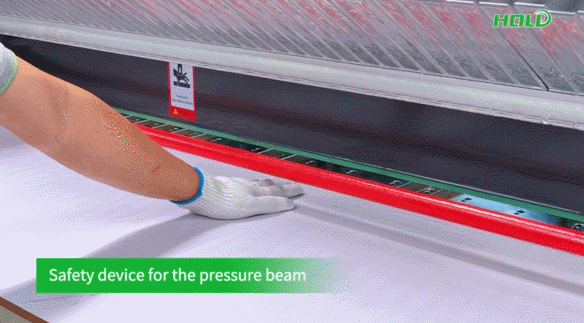

9 safety device for the pressure beam

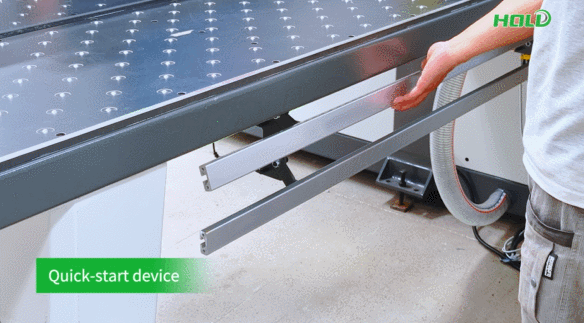

10 Quick-start device

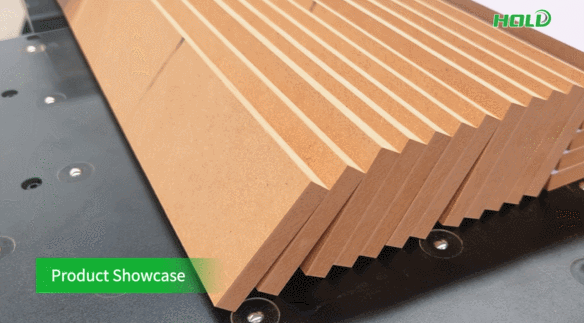

11 Product Showcase
