CNC BORING MACHINE(six-sided) HB621J
CNC BORING MACHINE(six-sided) HB621J
Versatile and efficient, capable of handling any task, for more efficient production management
Are you also struggling with these issues in the custom furniture and panel processing industries? Small panels are unstable and prone to misalignment during processing; drilling depths are inconsistent; dust accumulates on panel surfaces and is difficult to clean; irregularly shaped panels are hard to position accurately; and the processing workflow is cumbersome and time-consuming. Additionally, employee efficiency is low, equipment maintenance is a hassle, and there’s always the worry of missed or incorrect processing.
Don’t worry! Today, we’re introducing a CNC machining system that combines precision, efficiency, and intelligence. From process optimization to smart management, it comprehensively addresses all your machining pain points.
✅️Backed by patented technology, it delivers versatile and precise machining
Equipped with a high-power 6 kW upper spindle, the machine integrates a horizontal saw blade and a vertical milling cutter using proprietary patented technology, enabling it to complete complex milling operations—such as channels for lighting strips and LED strips—in a single pass, significantly improving processing efficiency. The upper drilling unit features a dedicated dust extraction system to address dust issues, while a proprietary pressure pump supplies independent air to the drilling unit to ensure consistent drilling depth. The dual-drilling-unit design allows for coordinated operation, accommodating panels of various sizes.
✅️Smart positioning adaptation for a hassle-free production process
The machine is equipped with an intelligent side-alignment system and an intelligent positioning device, featuring an intelligent angle error centering correction function. It can precisely position irregularly shaped panels, such as arcs and sectors, completely resolving the challenges associated with positioning such panels. Additionally, it is fitted with a pressure-stabilizing air tank to ensure consistent working pressure. The machine seamlessly integrates with various order-processing software and includes auxiliary functions such as automatic dimension marking, machining simulation, and zone-specific display, effectively preventing issues such as panel placement deviations, incorrect machining, and missed cuts.
1
Highlights
1
For Process
-
A variety of processes are available to meet diverse needs.
2
One Motor,Two Processes
2
Core configuration
3
Drill bank layout
-
Upper unit: 2 sets of drill bank, 1 set of milling cutter, 1 set of side grooving blade
-
Down unit: 1 set of drill bank, 1 sets of milling cutter
-
Upper drill bank: (10 vertical head, 6 horizontal head)*2
-
Down drill bank: 9 vertical head
4

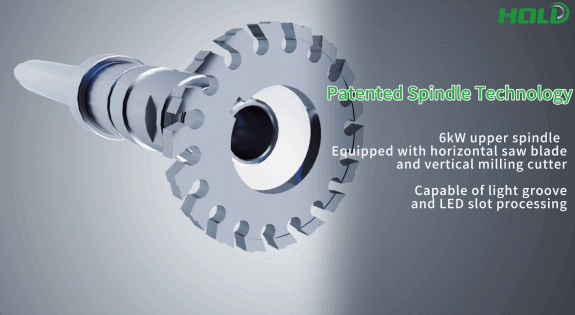

Patented Spindle Technology
-
Patented tech: The upper spindle simultaneously carries a horizontal saw blade and a vertical milling cutter
-
One spindle for two different machining processes. The saw blade is suitable for side grooving, including light slot grooving.
5

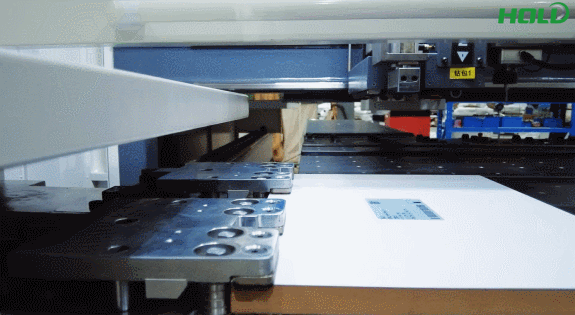

Dual- linkage gripper
-
Two grippers are controlled by servo and the positioning is accurate. When the gripper moves quickly, the lower gripper plate sinks to avoid touching the panel.
-
The gripper has blowing function, which can blow off the dust on the gripper and avoid pinching the panel.
6

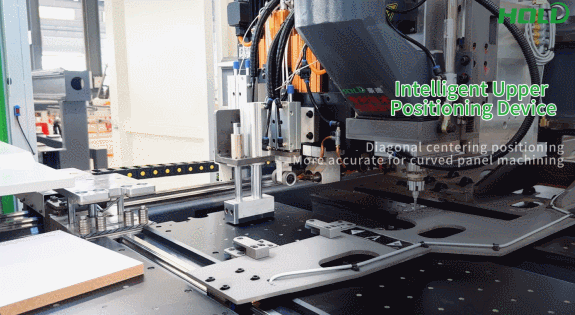

Intelligent upper positioning device
-
Equipped with diagonal centering positioning, the positioning of circular arc workpieces and banana-shaped workpieces is not affected.
-
Automatically measures panel width and corrects placement errors in a timely manner.
7

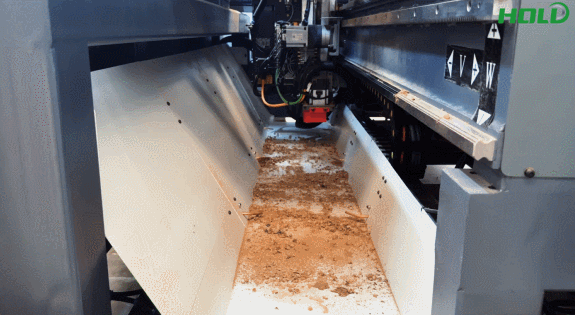

Dust Blowing and Collection System
-
Air blowers Quickly expels dust to external dust collection system.
8
Minimum processing size
-
Minimum processing size：70×30mm
9

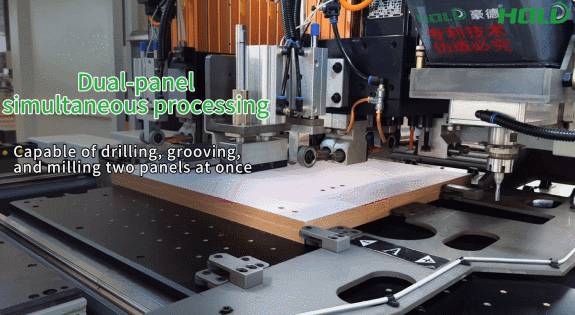

Dual-panel simultaneous processing
-
Capable of drilling,grooving,and milling two panels at once.
10

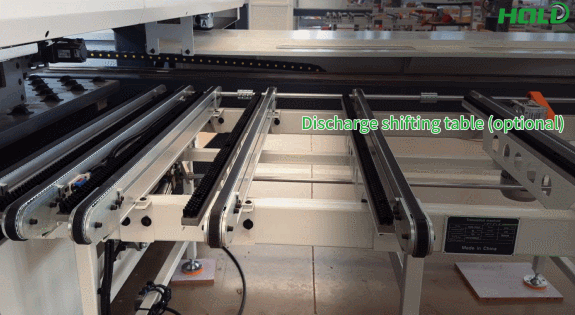

Discharge shifting table (optional)
-
Optional discharge transfer table.
11

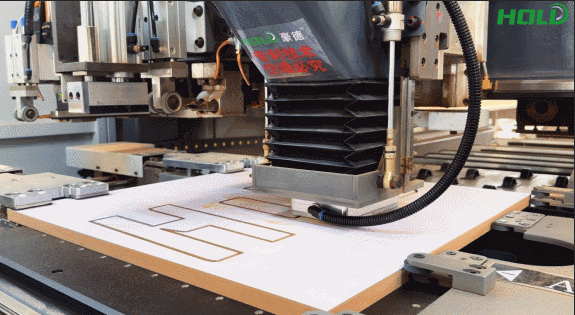

Machining Showcase
