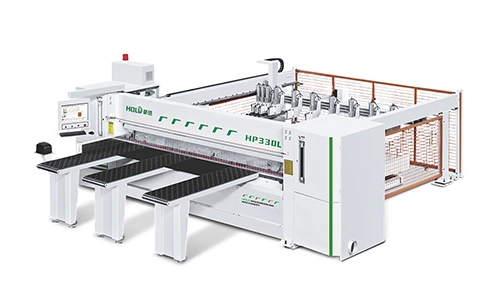

Computerized panel saw (rear loading) :HP330L
Feature:
● Hydraulic lifting table, capable of handling boards 15mm and above, supports front and rear feeding.
● Enhanced PC control.
● Main saw independently motor driven (18.5kw).
● Groove saw independently motor driven (2.2kw).
● Saw carriage servo-driven operation.
● Pneumatic dual-side support (S).
● Quick pneumatic lock for blade change.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Cutting length |
3280mm |
|
Cutting width |
3280mm |
|
Maximum cutting height |
100mm with intelligent lifting |
|
Main saw blade |
400x4.4x75x72T |
|
Groove saw blade |
160x4.4/5.4x45x24T |
|
Saw carriage forward speed |
5-100m/min |
|
Saw carriage return speed |
0-100m/min |
|
Mechanical hand (robot) forward speed |
0-100m/min |
|
Mechanical hand (robot) return speed |
0-100m/min |
|
Side pressure device |
Pneumatic dual-side support (S) |
|
Main saw motor power |
18.5kw |
|
Groove saw motor power |
2.2kw |
|
Saw carriage servo motor |
1.8kw |
|
Feeding servo motor |
1.8kw |
|
Number of mechanical hands (robots) |
10pcs |
|
High-pressure air cushion platform fan |
2.2kw |
|
Rear loading platform size |
2500x1300x600mm |
detail pictures
Precision main saw
Powered roller hydraulic lifting platform for side feeding
High-quality chrome-plated metal table surface
