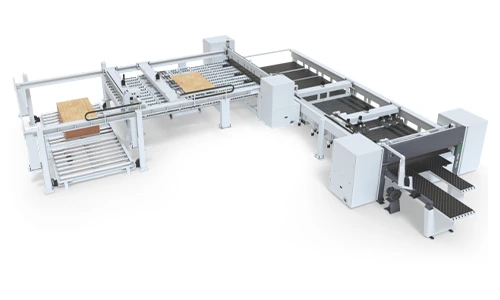

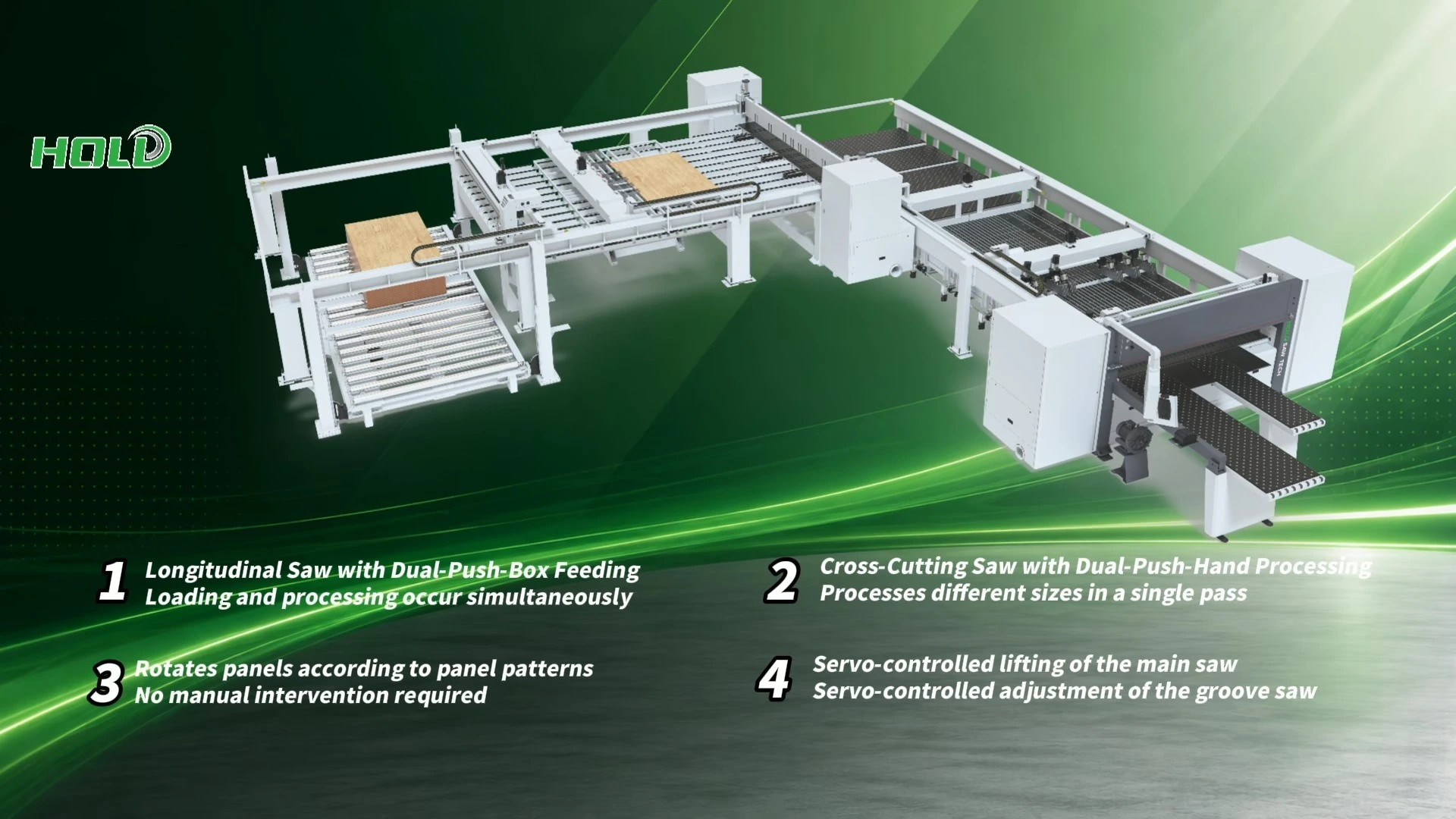

Angular saw HP4426
- Small footprint, high efficiency, labeling, cutting, and one-time molding, saving time and labor.
- The sawing machine uses gear rack transmission, with the rack surface suspended and installed on the bottom surface of the frame, forming an integral whole with the frame to ensure that the sawing machine can move quickly.
- The longitudinal saw realizes 4400mm large plate processing, the transverse saw realizes 2600mm plate processing, and the longitudinal saw and transverse saw can process simultaneously.
- No manual operation required, automatically adjusts the sawing direction.
- Double crossbeam feeding, processing and feeding are carried out simultaneously.
- Both large and small saws use independent motor drives, independent lifting mechanisms, and independent belt drives, greatly improving sawing capacity and equipment stability.
- The lifting mechanism is made of precision-machined aluminum plates, which reduces the weight of the sawing machine and ensures the durability of the sawing machine pulleys.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Machine net weight |
about 21700kg |
|
Total power |
about 78kw |
|
rip cut sawing size |
4400mm |
|
cross cut sawing size |
2600mm |
|
Cutting thickness |
120mm |
|
Main saw blade diameter |
Φ450mm*2 |
|
Feed servo motor |
1.8kw |
|
automatic feed speed |
0-80m/min |
