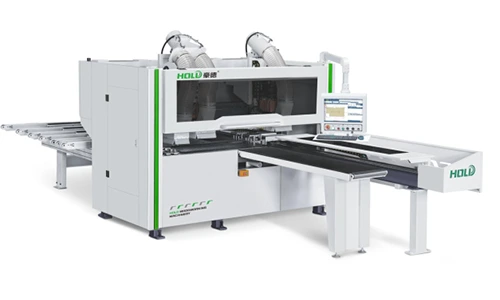

CNC BORING MACHINE(six-sided) HB621GKH6X
- Six-tool linear automatic tool-changing spindle,paired with an independent cross-side milling tool magazine, enables machining processes including profiling, wiring channels, LED strip grooves, top/bottom hinge mortises, concealed fastener slots, and Lamello joints.
- The drill bank is arranged to a compact and reasonable structure. The wooden plug holes and glue plug holes in any position of the plate can use two drills at the same time, which is better than the L-type common structure.
- In middle of the upper drilling bank, there is an additional dust port to solve the dust problem on the plate surface.
- The feeding gripper adopts a unique design. With hole in the middle , so the small plate in the gripper position can be punched nearby. Single clip hand with four positioning column, so processing small plate is more stable.
- The booster pump only supplies gas to the drill bank independently. Pump only for the one upper and one down drill banks, so the hole depth is more stable and guaranteed.
- Intelligent up positioning device. When there is arc-shaped, fan-shaped plate, positioning will not be affected. Rectangular plate can achieve the intelligent center function of diagonal line deviation.
- Vertical drilling with four drill head in a square, it can simultaneously drill adjacent large and small hole process.
- Super large pressure-stabilized gas storage tank. It makes the working pressure stabler.
- Intelligent side aligner system.
- It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required.
- Slotting up and down simultaneously.
- Two panels mirrored processing.
- Supporting DXF file from CAD software.
- Panel size can be read automatically. Docking order production software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel.
- Supporting simulation function, it can check the processing action in advance to avoid wrong processing.
- The processed and waiting-to-processing files are displayed separately, which is convenient to check whether the processing is missing.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
For Process
|
Technical data |
||
|
Other parameters |
Size |
5900x3150x2500mm |
|
Weight |
3000kg |
|
|
Dust extraction port |
Up:φ200mm*2+φ150mm Down:φ150mm
|
|
|
Milling spindle |
Total power |
36.15kw |
|
Spindle motor power |
Up:9kw*1ATC Down:6kw*2 |
|
|
Spindle rotation speed |
18000rpm |
|
|
Feed Rate |
X axis |
14-20-23m/min |
|
Y axis |
100m/min |
|
|
Z axis |
50m/min |
|
|
A axis |
60m/min |
|
|
U axis |
130m/min |
|
|
V axis |
100m/min |
|
|
W axis |
50m/min |
|
|
Boring unit |
Up vertical drilling head |
12*2 |
|
Up horizontal drilling head |
X:(2+2)x2 Y:2x2 |
|
|
Down vertical drilling head |
9 |
|
|
Side milling range |
Min. length |
Side support direction:70 mm Linkage gripper direction 400 mm |
|
Max. thickness |
55mm |
|
|
Max. length |
3300mm |
|
detail pictures
Drill bank layout
9kw tool-changing spindle + 6+1 automatic tool-changing ATC + automatic tools pre-setter servo rotary ATC + 1
Equip with four side aggregate
Two bottom spindles
Double linkage gripper
Intelligent upper positioning device+Intelligent side support
Independent floating support
Stabilizing Components
Compressed Air Booster
High-precision steel belt dust-proof guide rail
High precision rack
Automatic lubrication system
Electric control system
Servo control system
Air floating loading table
