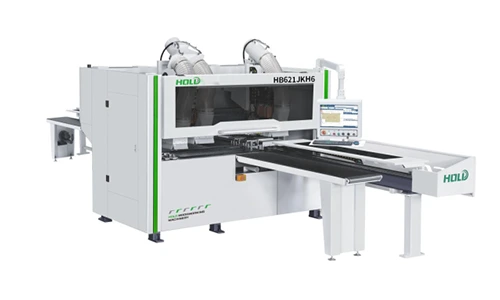

CNC BORING MACHINE:HB621JKH6

six-sided)

Six-tool linear automatic tool-changing spindle, paired with an independent cross-side milling tool magazine, enables machining processes including profiling, wiring channels, LED strip grooves, top/bottom hinge mortises, concealed fastener slots, and Lamello joints.
The drill bank is arranged to a compact and reasonable structure. The wooden plug holes and glue plug holes in any position of the plate can use two drills at the same time, which is better than the L-type common structure.
In middle of the upper drilling bank, there is an additional dust port to solve the dust problem on the plate surface.
The feeding gripper adopts a unique design. With hole in the middle , so the small plate in the gripper position can be punched nearby. Single clip hand with four positioning column, so processing small plate is more stable.
The booster pump only supplies gas to the drill bank independently. Pump only for the one upper and one down drill banks, so the hole depth is more stable and guaranteed.
Intelligent up positioning device. When there is arc-shaped, fan-shaped plate, positioning will not be affected. Rectangular plate can achieve the intelligent center function of diagonal line deviation.
Vertical drilling with four drill head in a square, it can simultaneously drill adjacent large and small hole process.
Super large pressure-stabilized gas storage tank. It makes the working pressure stabler.
Intelligent side aligner system.
It adopts precision gear rack transmission. The rack precision is DIN6, and it is ground by a precision grinder. High precision, no special refueling and maintenance are required.
Slotting up and down simultaneously.
Two panels mirrored processing.
Supporting DXF file from CAD software.
Panel size can be read automatically. Docking order production software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel.
Supporting simulation function, it can check the processing action in advance to avoid wrong processing.

Inquiry

Write a Review

Process

Technical parameter
Other parameters Size	5900x3150x2500mm
Other parameters Weight	2900kg
Other parameters Dust extraction port	Up:φ200mm*2 Down:φ150mm
Milling spindle Total power	27.8kw
Milling spindle Spindle motor power	Up:6kw1ATC Down:6kw2
Milling spindle Spindle rotation speed	18000rpm
Panel size Min. width	≥30mm
Total Power	Approx. 25.5KW

detail pictures

Independent floating support

Stabilizing Components

Compressed Air Booster

Drill bank layout

High precision rack

Air floating loading table
