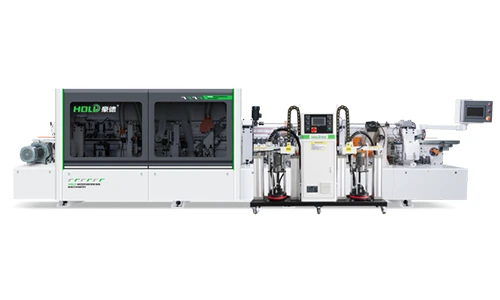

Bevel Edge Bander:HD781
- Grinding and forming process utilizes a 0.75 kW motor for straight edge machining + a 5.5 kW motor for bevel edge grinding, ensuring surface flatness.
- Electric lifting pressure beam reduces labor intensity while enhancing efficiency and precision.
- Edge band grooving with pneumatic retraction to ensure consistent groove depth;
- Panel surface gluing.
- Straight-edge + bevel-edge pressing mechanism: Presses bevel edges first, then straight edges to prevent corner chipping.
- Conveyor reducer employs high-efficiency hard-toothed gear reducer for robust power transmission;
- Equipped with release agent and cleaning agent dispensing systems.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Feed Speed |
11.5 m/min |
|
Edge Banding Thickness |
For full bevel edges and vertical surfaces with straight edges of 5-8mm: 0.8-1.2mm For vertical surfaces with 3mm straight edges: 0.8-1.0mm |
|
Panel thickness |
45° beveled straight edge: 9-20mm (straight edge 3-8mm) 45° full bevel edge: 9-18mm |
|
Bevel angle |
45° (non-adjustable) |
|
Panel Length |
≥100mm |
|
Sheet Width |
≥100mm |
|
Operating Air Pressure |
0.6 MPa |
|
Total Power |
Approx. 22 kW |
detail pictures
Crushing and Molding
Panel Heating Unit
Glue Application: Dual-Color PUR Bevel/Straight Integrated No-Clean Glue Pot
Straight-line PUR Hot-melt Pump Glue Applicator
Bevel Edge Pressing Mechanism + Straight Edge Pressing
Front and rear flush alignment
Roughing + Finishing Mechanism
Edge Scraping
Flexible Flat Scraper + Cleaning Agent System
