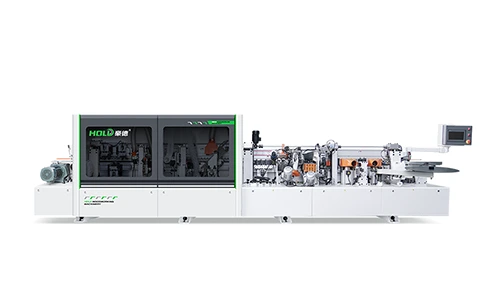

Automatic bevel edge banding machine :HD785
bevel-straight, full bevel edge banding machine
Feature:
● Pre-milling and profiling with a 7.5KW motor to maintain a smooth surface.
● Electric lifting pressure beam reduces labor intensity and increases efficiency and accuracy.
● Edge banding tape grooving + board surface gluing.
● Bevel edge pressing mechanism + straight edge pressing: first press the bevel edge, then press the straight edge, improving the issue of chipping at the two right angles.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Lifting |
Electric lifting |
|
Feed Speed |
≤14m/min |
|
Edge Banding Tape Thickness |
When leaving a 5mm straight edge on the wood board:0.8-1.2mm |
|
Board Thickness |
45° beveled straight edge：16-22mm (3 or 5mm straight edge) |
|
Bevel Angle |
45° (non-adjustable) |
|
Board Length |
≥250mm |
|
Board Width |
≥120mm |
|
Minimum Board Size |
250x120mm |
detail pictures
pre-milling with two profiling cutters
flexible edge scraping + cleaning agent device
end cutting+rough trim&fine trim
