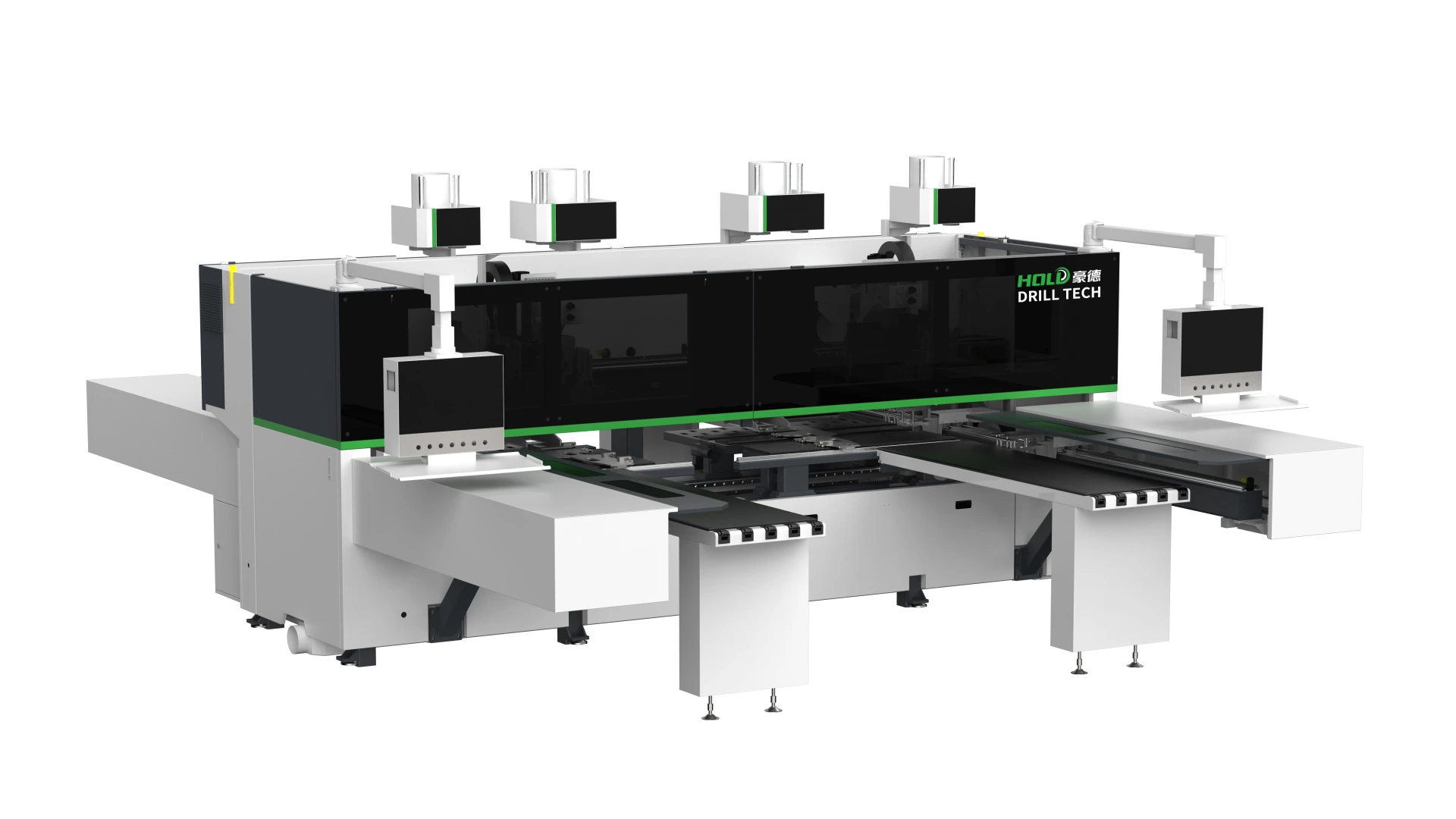

CNC Drilling Center (Dual Station Six-Sided Drilling): HB642GP
Feature:
● Simultaneous drilling; simultaneous top and bottom slotting; dual-board processing;
● Supports CAD software for drawing, and imports DXF files for processing;
● Automatic dimension labeling, interfaces with nesting software, displays edge banding thickness information on all four sides, facilitating material placement;
● Supports simulation function to preview machining actions and prevent errors
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Milling groove processing spindle |
Total power: 46 kW Spindle motor power: 6 kW x 4 Spindle speed: 18000 rpm |
|
Maximum positioning speed |
X/U axis speed: 130 m/min Y axis speed: 100 m/min Z axis speed: 30 m/min A axis speed: 60 m/min V axis speed: 100 m/min W axis speed: 30 m/min |
|
Drilling combination unit |
Upper vertical drilling: 12 units x 4 Upper horizontal drilling：X direction: (2+2) x 4/Y direction: (2+2) x 4 Lower vertical drilling: 9 units x 2 |
|
Processing size range |
Minimum board width: 30 mm Maximum board width：Left station: ≤ 650 mm/Right station: ≤ 1210 mm Minimum board length: 120 mm Maximum board length: 3100 mm Minimum board thickness: 9 mm Maximum board thickness: 55 mm |
● Big data analysis, tracks machining counts for each drill bit to prompt replacement upon reaching preset usage limits;
● Machining statistics feature: records QR code information for each board, start and end times of machining, total time spent，interval between loading upper and lower boards, facilitating employee performance management.
● Distinguishes between processed and pending files for easy verification of completion;
● Multi-axis CNC system with multi-channel technology: pre-scans multiple boards for machining while one is being processed, reducing scanning time; uses multi-channel control for feeding and machining, enabling quick return and reloading of materials after boards are released from clamps;
● Remote service via network, supports remote machine updates and backups; bus communication technology provides detailed alarm information and interfaces well with MES system alarm interfaces.
detail pictures
drill head layout
large capacity stable pressure air tank
linear guide rail guidance and synchronization
