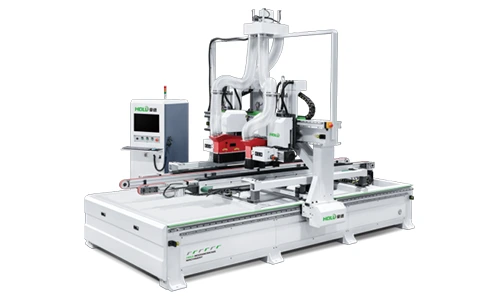

CNC Square-Cutting Machine for Integrated Door, Wall, and Cabinet Systems :HG431
- Suitable for rapid squaring and four-sided sawing of various wooden doors.
- Through-feed automatic loading/unloading. standalone or inline operation; fastest 50-second four-sided squaring per door.
- Configuration: one cross-cut saw + two rip-cut saws + milling spindle.
- Saw blade set includes guide saws to prevent edge chipping.
- Servo-driven side stops with front-back adjustment for precise clamping and positioning.
- Conveyor-based scrap collection (edge scraps transported out of the processing area via conveyor belt).
- Fully automatic width adjustment via servo motors.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
For product
|
Technical parameter |
|
|
Overall Dimensions |
Approx. 5020x3090x3100mm |
|
Total Power |
Approx. 43kW |
|
Maximum Processing Length |
3000mm |
|
Processing Thickness |
30-60mm |
|
Main Saw Speed |
3000 rpm |
|
Main Saw Blade Power |
5.8 kW |
|
Main Saw Blade Specifications |
Φ30 x Φ300 mm |
|
Workbench Height from Ground |
920 mm |
|
Milling Spindle Power |
6 kW |
detail pictures
Scanner
One set of horizontal saw + two sets of vertical saw
Double front stop positioning unit
Side Stop Points (Left/Right Servo Positioning)
Through-Type Belt Feeding and Discharging Conveyor Mechanism (Dual Motor)
Waste collecting belt
Vacuum pump
Main saw + scoring saw
Automatically adjusted scoring saw
Auto lubrication system
Adjustable table width
Milling Spindle
