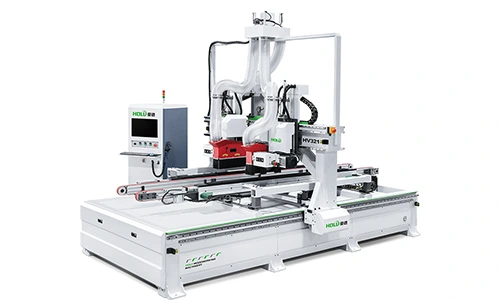

CNC Wood Door Four-Sided Saw: HV321
Feature:
● Suitable for rapid squaring and four-sided cutting of various wood doors.
● Through-feed automatic infeed and outfeed; can be used as a standalone machine or in-line, with the fastest cycle time of 50 seconds per door for all four sides.
● Features one horizontal saw and two vertical saw structures.
● Saw blade group with guide saw to prevent edge chipping.
● Precise clamping and positioning with center alignment.
● Conveyor-based waste collection (edge and corner waste is transported out of the processing area via a conveyor belt).
● Fully automatic width adjustment with servo motor.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Maximum Processing Length |
3000mm |
|
Processing Thickness |
30-60mm |
|
Main Saw Speed |
3000rpm |
|
Main Saw Power |
5.8kW |
|
Main Saw Blade Specification |
Φ30xΦ300mm |
|
Total Power |
Approximately 35kW |
|
Table Height from Ground |
906mm |
|
Processing Width |
300-1100mm |
|
Maximum Cutting Speed |
18m/min |
|
Secondary Saw Speed |
12000rpm |
|
Secondary Saw Power |
2.2kW |
|
Secondary Saw Blade Specification |
Φ22xΦ120mm |
|
Machine Dimensions |
Approximately 4970x2700x3100mm |
|
Dust Extraction Port Quantity |
Φ200x1 |
detail pictures
precision dado saw blade set structure
2 sets of longitudinal saws + 1 set of transverse saws structure
Double front positioning structure
