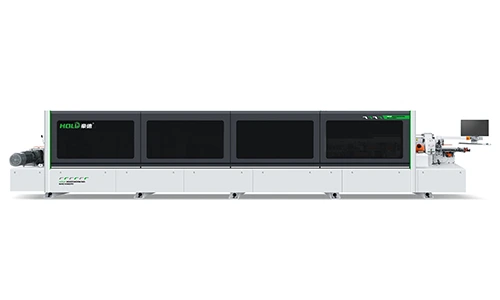

Intelligent Laser Edge Banding Machine (Heavy-Duty Fully Automatic Edge Banding Machine) :S 280
- True seamless edge banding without glue; high-energy laser beam melts the functional layer on the back of the edge band and bonds it with the substrate, offering exceptional adhesion, outstanding weather resistance, and a perfect visual finish.
-
HOLD’s proprietary weather-resistant technology eliminates the need for a separate enclosure and ensures the edge banding remains unaffected by ambient temperature or humidity.
-
Laser system is ready to use upon startup without preheating, improving productive time efficiency.
-
Laser system is ready to use upon startup without preheating, improving productive time efficiency.
-
Fully intelligent control system with real-time data transmission for equipment monitoring and one-click access to production reports.
Process
|
Technical parameter |
|
| Lifting |
CNC Lifting |
|
Total Power |
About 24.5kw |
|
Overall Dimensions |
About 9000x900x1700mm |
|
Edge Band Thickness |
Gluing：0.4-3mm，laser：1-3mm |
|
Board Thickness |
Gluing：10-60mm，laser：10-25mm |
|
Board Length |
≥120mm |
|
Board Lenght |
≥120mm |
|
Board Width |
≥50mm |
detail pictures
Product video
