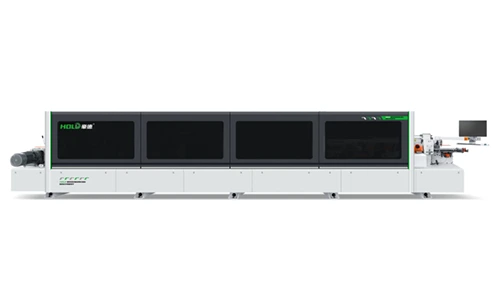

Intelligent Laser Edge Banding Machine:S310
Intelligent Laser Edge Banding Machine
- True seamless edge banding effect, without glue, the high-energy laser beam melts the functional layer on the back of the edge banding tape and bonds it to the substrate, with super strong adhesion, excellent weather resistance, and perfect visual experience.
- The laser system is ready to use without heating, which improves the utilization rate of effective working hours.
- Good waterproof performance, high and low temperature resistance, environmental protection and no pollution.
- Fully intelligent control system, with 15 powerful functions, real-time data transmission, real-time understanding of equipment status, one-click production report.
- In addition to laser edge sealing, PUR glue edge sealing can also be selected.
- Patented laser system, perfectly compatible with ABS, PP, acrylic, laser edge banding with functional layer.
- Servo belt feeding, through servo control, precise belt feeding, reduced side band reserve, saving edge banding material costs.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Lifting |
CNC lift |
|
Overall Dimensions |
About 10500x900x1700mm |
|
Feed Rate |
Gluing:14-18-23-26m/min Laser：≤23m/min(Max 23 m/min for 18 mm thickness) |
|
Tracking Feed Speed |
Narrow Edge Tracking: ≤18 m/min |
|
Edge Band Thickness |
Gluing：0.4-3mm，Laser：1-3mm |
|
Board Thickness |
Gluing：10-60mm，Laser：10-40mm |
|
Operating Pressure |
0.6Mpa |
|
Operating air pressure |
0.6 MPa |
detail pictures
Two-Seat Three-Motor Quick end cutting
Rough Trimming + Fine Trimming
Two Sets of Scraping
