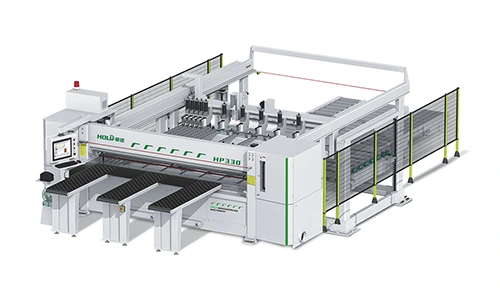

Computer panel saw (rear loading) HP330H
Feature:
● Ball screw driven lifting table, capable of handling boards 12mm and thicker, supports front and rear feeding.
● Rear loading ball screw lifting table, with a powered roller platform, optional additional powered roller table (i.e., one for operation and one as backup for material loading).
● Enhanced PC control.
● Servo-driven saw carriage.
● Pneumatic dual-side support (S).
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Cutting length |
3180mm |
|
Cutting width |
3300mm |
|
Maximum cutting height |
100mm (120mm with intelligent lifting) |
|
Main saw blade |
400x4.4x75x72T / 450x4.4x75x84T |
|
Groove saw blade |
160x4.3/3.2x45x24T |
|
Saw carriage forward speed |
5-100m/min |
|
Saw carriage return speed |
0-100m/min |
|
Mechanical hand (robot) forward speed |
0-100m/min |
|
Mechanical hand (robot) return speed |
0-100m/min |
|
Side pressure device |
Pneumatic dual-side support |
|
Main saw motor power |
22kw |
|
Groove saw motor power |
2.2kw |
|
Saw carriage servo motor |
1.8kw |
|
Feeding servo motor |
1.8kw |
|
Number of mechanical hands (robots) |
10pcs |
product Feature
● Quick pneumatic lock for blade change.
● Industrial computer control.
● Optimization layout software, label printer.
● Durable and sturdy dual-side horizontal guide rails.
● Gear rack drive system that requires no lubrication.
detail pictures
Pneumatic dual-side support
High-strength press beam
Ball screw driven lifting platform
