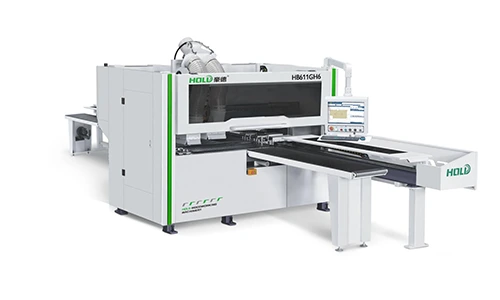

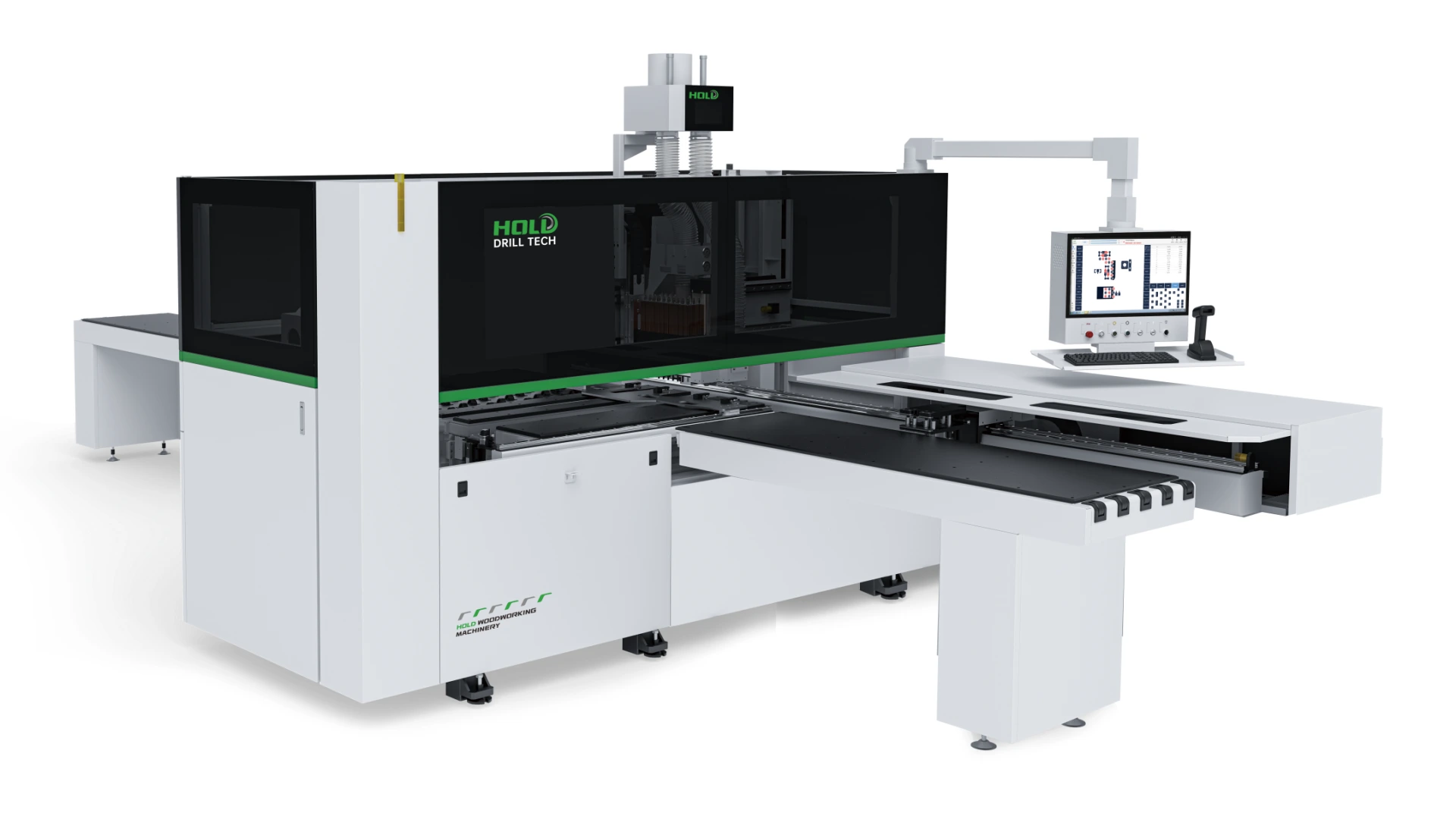

CNC drilling center (six-axis drilling) HB611GH6

lAn additional dust extraction device in the middle position of the upper drilling package solves surface dust issues.

lMinimum processing size of 70mm x 30mm.

lUnique design of the feeding clamp with a central opening allows for close-range drilling on small panels. Single clamp with four positioning columns ensures stability for processing small strip panels.

lThe booster pump provides independent air supply to the drilling package, ensuring reliable hole depth.

lIntelligent upper positioning device ensures that circular and fan-shaped panel positioning is unaffected, and rectangular panels can be intelligently centered to correct angle errors.

lVertical drills arranged in a grid pattern can simultaneously drill adjacent large and small holes.

lThe upper spindle is a 9KW automatic tool-changing spindle with a six-tool magazine, capable of milling, light channel slots, LED strip slots, top and bottom hinge slots, and invisible connector slots.

lThe lower processing unit features a dual-spindle design, allowing customers to install two different milling cutters (e.g., one for processing straighteners and another for vertical slots like light slots) without manual tool changes, improving efficiency.

lPrecision gear and rack transmission, with rack precision of DIN6 level, ground by precision grinders. High precision with no need for special oil maintenance.

lEquipped with HOLD’s own brand CNC drilling package, using high-grade ground gear transmission for high accuracy.

lSimultaneous drilling.

lSimultaneous upper and lower slotting.

lDual panel processing.

lSupports CAD software for drawing and importing DXF files for processing.

lAutomatic dimension marking, interfacing with order-splitting software, displaying edge banding thickness for easy panel placement.

lSupports simulation function to preview processing actions and avoid errors.

lBig data analysis tracks the usage of each drill bit, prompting for replacement after reaching the set usage count.

lProcessing statistics function records QR code information, start and end times, total processing time, and panel placement intervals for employee performance management.

lDifferentiates between processed and pending files for easy tracking of unprocessed panels.

lMulti-axis CNC system with multi-channel technology queues multiple pending panels for pre-scanning, reducing scanning time. Simultaneous material discharge and processing control use multi-channel control technology, allowing the clamp to quickly return for the next panel after releasing the previous one.

lNetworked remote service enables remote machine updates and backups. Bus communication technology provides detailed alarm information, better interfacing with MES system alarm interfaces.
