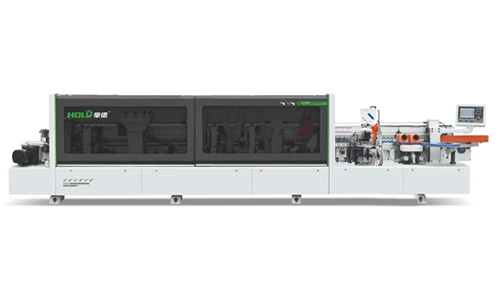

Intelligent Laser Welding Edge Sealing Machine :S698
- Ideal for high-end all-aluminum home edging.
- Bed frame constructed from high-strength structural steel plate welded for superior strength and stability, with rust-proof surface treatment and high-temperature baked paint finish.
- Fully intelligent control system with fifteen powerful functions, real-time data transmission for immediate equipment status monitoring, and one-click generation of production reports.
- Laser welding + PUR adhesive application system, standard with automatic color-matching adhesive dispenser.
- One set of four-wheel pressing + two sets of glue-wheel pressing deliver strong clamping force, ensuring tighter edge band adhesion, narrower glue lines, and superior finishing results.
- Four-blade high-speed tracking ensures flawless chamfering.
- Wire breakage detection mechanism and flexible edge scraping.
- Equipped with release agent and cleaning agent dispensers.
- Conveyor reducer utilizes high-efficiency hard-tooth-surface reducer for robust performance.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Equipment Dimensions |
Approx. 9600 x 900 x 1700 mm |
|
Total Power |
Approx. 30 kW |
|
Lifting |
CNC-controlled lifting |
|
Feed Speed |
Laser welding: 5 m/min PUR Coating: Feed Speed 12m/min |
|
Edge Banding Thickness Aluminum Edge Banding |
0.8mm |
|
PVC Edge Banding |
1.0-2.0mm |
|
Panel thickness Aluminum Welded Panel |
18mm |
|
Aluminum honeycomb panel |
10mm–60mm |
detail pictures
Track-Pressing System
Release Agent Device
Pre-milling
Glue Application: PUR No-Clean Glue Pot
Laser Welding System
First pressing group
Second set of extended pressing
Front and rear synchronized cutting
Rough Trimming + Fine Trimming
Four-Blade High-Speed Tracking
Edge Scraping
Wire Cutting Device + Flexible Flat Scraping + Cleaning Agent System
Polishing
Hard-tooth surface conveyor reduction motor
Unique design: Rubber-coated idler rollers
