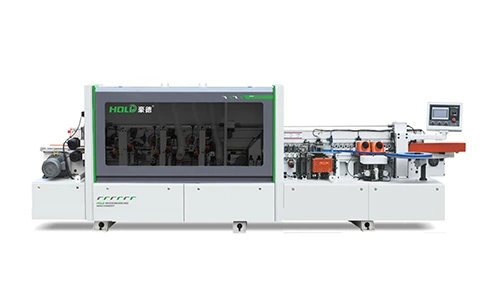

Automatic High-Speed Edge Banding Machine: HD620J
Feature:
● The platform is welded with high-strength structural steel plate, presenting high strength and stability. The surface is treated with rust prevention and high temperature baking paint.
●Electric beam lifting reduces labor intensity and increases efficiency and accuracy.
●Four oversized diameter pressing wheels, combined with four cylinders, ensure that the edge sealing strip is tightly pressed onto the workpiece.
●The adjustment mechanisms of the machine adopt counters, which are simple, intuitive, accurate, and durable to operate.
●The alignment head adopts linear guides and sliders, which have high precision and durability.
●The conveying reducer adopts high-efficiency hard tooth surface reducer, which is powerful.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
| Lifting | Electric lifting |
| Sheet length | ≥120mm |
| Sheet width | ≥80mm |
| Minimum sheet size | 120x80mm |
| Feed speed | 14-20-23m/min |
| Tape thickness | 0.4-3mm |
| Sheet thickness | 10-60mm |
| Working air pressure | 0.6Mpa |
| Total Power | 14.2kw |
| Exterior dimensions | 5600x900x1700mm |
detail pictures
Pre-Milling
Lower EVA Gluing System
Pressing and Scraping
End cutting
Rough trimming+Fine trimming
Scraping (2)
Product video
