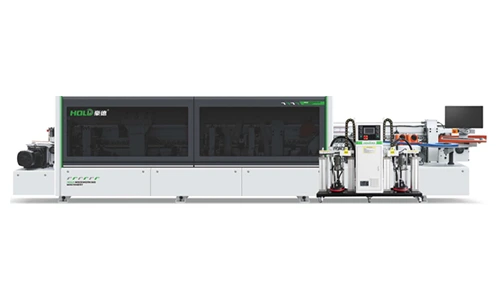

Heavy Duty Fully Automatic High Speed Edge Banding Machine :HD826J
Heavy Duty Fully Automatic High Speed Edge Banding Machine
- The front edge is placed behind the scraping edge to satisfy special process requirements, greatly reducing the chance of special workpieces being knocked off or corners being broken.
- Intelligent control system, real-time data transmission, real-time understanding of equipment status, production reports available at the touch of a button.
- PUR Changeover Pot + Automatic Color Mixing PUR Adhesive Machine。
- CNC lifting press beam reduces labor intensity and increases efficiency and accuracy.
- Equipped with permanent magnet synchronous motors, it has higher efficiency, fast response time, easily matches high conveying speeds, and has lower energy consumption during long-term use.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Overall dimension |
约9100*950*1800mm |
|
Up and Down |
CNC Lifting |
|
Feeding speed |
14m-20m-23m/min |
|
Tape thickness |
0.4-1.2mm |
|
Panel Thickness |
10-60mm |
|
Panel Length |
≥120mm（Start tracking≥300mm） |
|
Panel Width |
≥40mm |
|
Mini. Panel Size |
120x40mm(No tracking) 40x300mm或120x100mm(Start tracking) |
detail pictures
Rough Trimming + Fine Trimming
Two sets of scraping
End cutting
Integrated four-motor high-speed corner rounding
Two sets of buffing
Conveying equipped with permanent magnet synchronous motor
