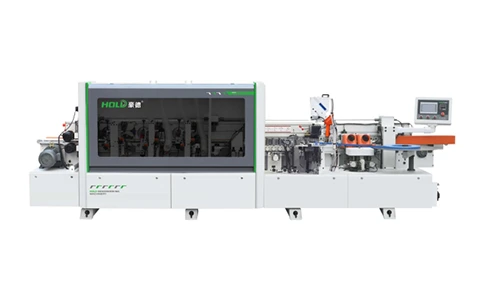

EDGE BANDER:HD620JPKQSC
- The platform is welded with high-strength structural steel plate, presenting high strength and stability. The surface is treated with rust prevention and high temperature baking paint.
- Electric beam lifting reduces labor intensity and increases efficiency and accuracy.
- Four oversized diameter pressing wheels, combined with four cylinders, ensure that the edge sealing strip is tightly pressed onto the workpiece.
- The adjustment mechanisms of the machine adopt counters, which are simple, intuitive, accurate, and durable to operate.
- The alignment head adopts linear guides and sliders, which have high precision and durability.
- The conveying reducer adopts high-efficiency hard tooth surface reducer, which is powerful.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Lifting |
Electric lifting |
|
Feed speed |
14m-20m-23m/min |
|
Edge thickness |
0.4-3mm |
|
Sheet thickness |
10-60mm |
|
Sheet length |
≥120mm |
|
Sheet width |
≥100mm |
|
Minimum sheet size |
120x100mm |
|
Working air pressure |
0.6 MPa |
detail pictures
Control System
Pre-Milling
Gluing Unit: Fast-Melting Adhesive + Upper Glue Pot Coating System + Automatic Glue Granule Supply
Pressing Unit
End cutting
Rough trimming+Pneumatic Fine trimming
Pneumatic Scraping+Flexible Flat Scraper
Buffing
Deceleration motor
×
