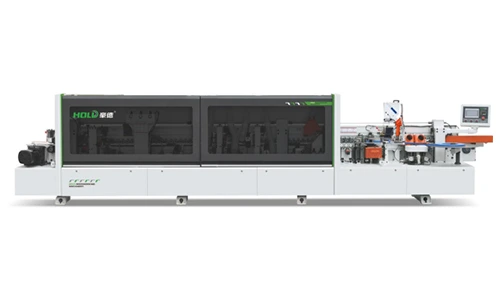

Automatic high speed edge banding machine:HD622JCA4
- The bed frame is welded from high-strength structural steel plates, ensuring exceptional strength and stability. The surface undergoes rustproof treatment and is finished with high-temperature baked paint.
- Glue Application 1: Rapid glue melting + automatic granule feeding + top-mounted glue pot. Reserves a PUR interface; adding a PUR glue melting machine enables dual-purpose glue pot (PUR/EVA) with quick switching.
- Gluing Unit 2: EVA bottom-mounted glue pot.
- Panel heating unit.
- Flexible flat edge scraper.
- Conveyor reducer utilizes high-efficiency hard-tooth-surface reducer for robust power.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Overall dimensions |
8400x900x1700mm |
|
Weight |
3500kg |
|
Lifting |
Electric lifting |
|
Feed speed |
14m-20m-23m/min |
|
Edge thickness |
0.4-3mm |
|
Minimum panel size |
60x120mm，50x300mm （Seal the long edge, with tracking available） |
|
Working air pressure |
0.6Mpa |
detail pictures
Separation Agent Device
Pre-Milling
Panel Heating Unit
Gluing Unit 1: Fast-Melting Adhesive+ Upper Glue Pot Coating System+ Automatic Glue Granule Supply
Gluing Unit 2: Lower EVA gluing system
Four-channel belt conveyors
Four-channel belt conveyors
Five-Wheel Pressing Unit
End cutting
Rough trimming+Pneumatic Fine trimming
Corner rounding
Different-shaped panels can be trimmed to fit
Two Sets of Edge Scrapers
Flexible Flat Scraper + Cleaning Agent Device
Double buffing
