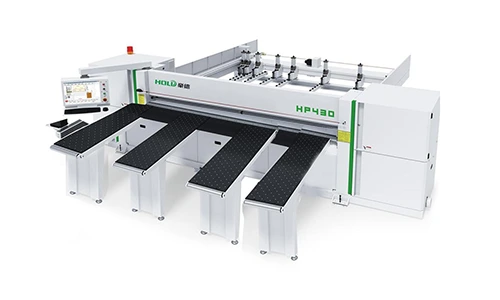

Front feeding panel saw: HP430G
Technical parameter
|
Cutting length |
4300mm |
|
Cutting width |
4300mm |
|
Maximum blade height |
100mm (120mm with intelligent lifting) |
|
Main saw blade |
400x4.4x75x72T (450x4.4x75x84T) |
|
Groove saw blade |
160x4.4/5.4x45x24T |
|
Saw carriage forward speed |
5-100m/min |
|
Saw carriage return speed |
0-100m/min |
|
Feeding shaft feeding speed |
0-100m/min |
|
Feeding shaft idle speed |
0-100m/min |
|
Side pressure device |
Pneumatic side support |
product Feature
● Heavy-Duty Machine Body: Multiple annealing processes ensure durability and resistance to deformation.
● Pressure Beam: High-strength integrated pressure beam ensures perfect pressing of the panels for stable cutting.
● Dual-End Gear and Rack Synchronized Pressure Beam: Even pressure distribution across the panels.
● Minimal Pressure Beam Opening Width: Optimized dust extraction capability for perfect cutting results.
● Saw Base: High-strength structure with gear and rack drive system requiring no lubrication; manual scoring saw adjustment for easy and quick operation.

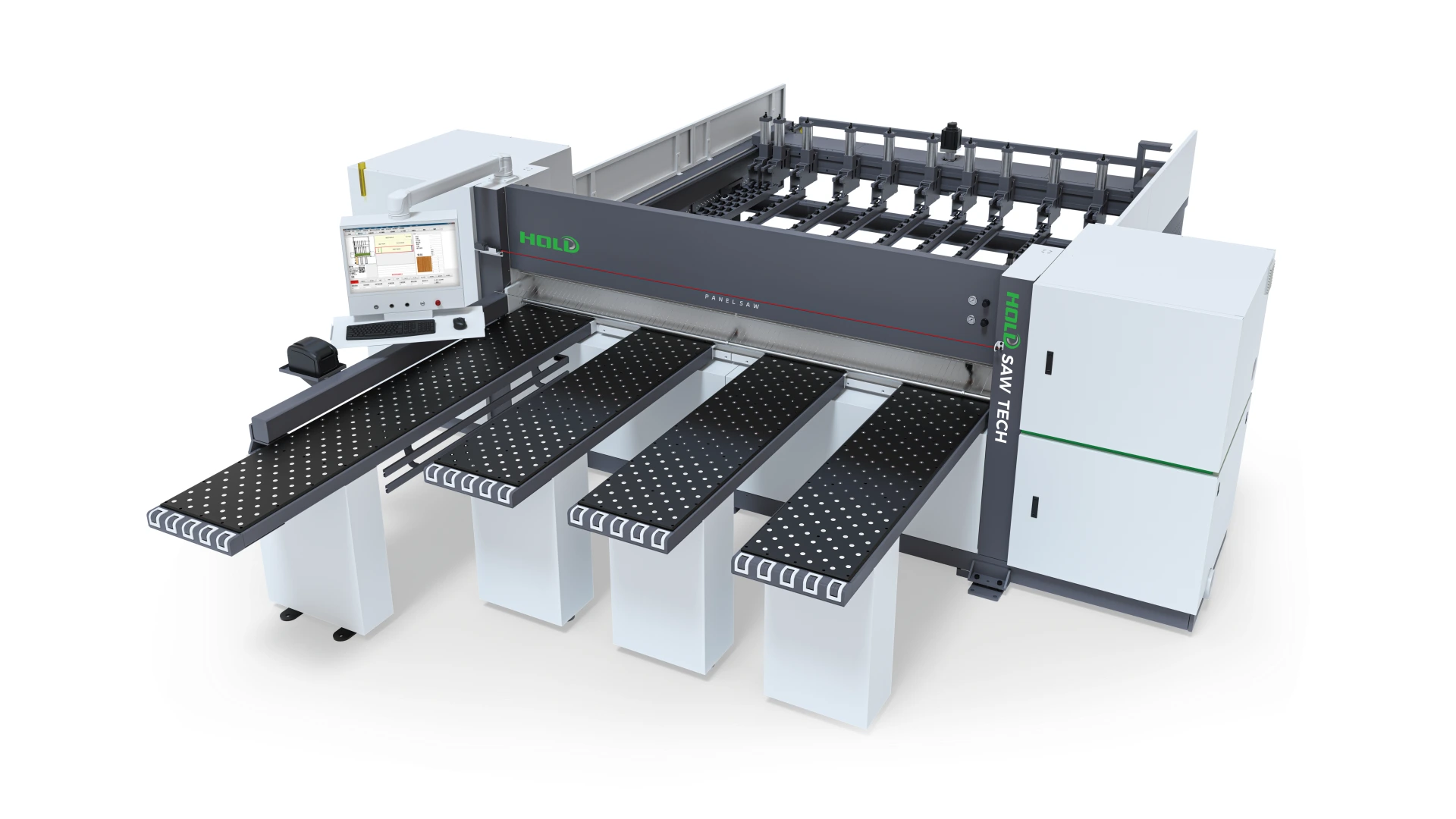

detail pictures
