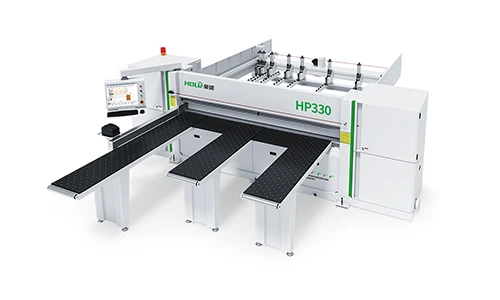

Front feeding panel saw :HP330
Technical parameter
|
Max. cutting length |
3300mm |
|
Max. cutting width |
3300mm |
|
Max. height of saw blade |
100mmIntelligent lifting |
|
Main saw blade |
400x4.4x75x72T |
|
Groove saw blade |
160x4.4/5.4x45x24T |
|
Blade carriage forward speed |
5-80m/min |
|
Blade carriage backward speed |
0-100m/min |
|
Gripper forward speed |
5-80m/min |
|
Gripper backward speed |
5-100m/min |
product Feature
● Compatible integration with various cutting optimization software, barcode management software, and factory automation software.
● The main saw features intelligent lifting, automatically adjusting lifting height according to the thickness of the board for optimal cutting results; the maximum cutting height of the main saw can reach 100 mm.
● Intelligent positioning of the main saw, automatically positioning according to the width of the board, reducing travel distance and effectively improving cutting efficiency.
● The saw carriage is welded and processed as a whole after completion to ensure accuracy requirements.
● The saw carriage adopts four-point stress distribution to ensure uniform stress during cutting operations, ensuring the cutting effect of the board.
detail pictures
