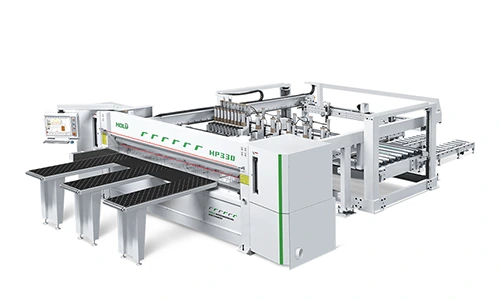

Computer panel saw (rear loading) :HP330HB
Feature:
● Ball screw driven lifting table, capable of handling boards 12mm and thicker, supports front, rear, and side feeding; side feeding area occupies 7x8 meters.
● Rear loading lifting table with powered roller platform, including a transfer powered roller table (i.e., one for operation and one as backup); stack of materials and pushing materials also operate on a one-to-one basis, greatly improving efficiency.
● Enhanced PC control.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Cutting length |
3180mm |
|
Cutting width |
3300mm |
|
Maximum cutting height |
100mm (120mm with intelligent lifting) |
|
Main saw blade |
400x4.4x75x72T |
|
Groove saw blade |
160x4.3/3.2x45x24T |
|
Saw carriage forward speed |
5-100m/min |
|
Saw carriage return speed |
0-100m/min |
|
Mechanical hand (robot) forward speed |
0-100m/min |
|
Mechanical hand (robot) return speed |
0-100m/min |
|
Side pressure device |
Pneumatic dual-side support |
|
Main saw motor power |
22kw |
|
Groove saw motor power |
2.2kw |
|
Saw carriage servo motor |
1.5kw |
|
Feeding servo motor |
1.5kw |
|
Number of mechanical hands (robots) |
10pcs |
|
High-pressure air cushion platform fan |
2.2kw |
|
Rear loading platform size |
3800x2200x600mm |
product Feature
● Main saw independently motor driven (22kw).
● Groove saw independently motor driven (2.2kw).
● Saw carriage servo-driven operation.
● Pneumatic dual-side support (S).
● Quick pneumatic lock for blade change.
detail pictures
High-precision clamp plate mechanical hand
Front panel cutting clamp pusher + rear loading feeding pusher
Ball screw driven lifting platform
