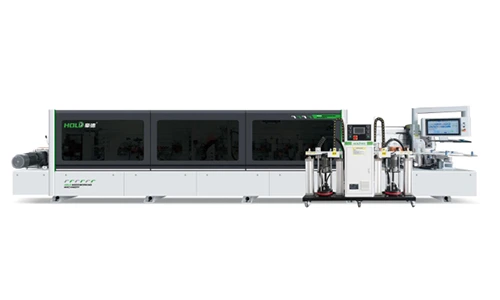

Heavy duty automatic high-speed edge banding machine: HD823J
Heavy duty automatic high-speed edge banding machine
- Heavy-duty machine frame with CNC machined to ensure the flatness of the table.
- Heavy-duty heightened press beam, compared with ordinary press beam, Heavy-duty heightened press beam greatly increases the rigidity and strength of the press beam to ensure the stability of the press beam during high rigidity operation.
- V-belts, Min.panel size: 300×40mm (Corner rounding On).
- Notch avoidance, can satisfy standard edge banding, also can cope with notch edge banding process, screen a key to quickly change over.
- End cutting behind the scraping, to satisfy the needs of special processes, greatly reducing the chances of special workpieces knocking boards off the corner.
- Industrial control system, fully intelligent control system, real-time data transmission, real-time understanding of the status of the equipment, production reports a key to get.
- CNC Lifting press beam, reduce labor intensity, increase efficiency and accuracy.
- Sorvo tape feeding, more accurate tape feeding.
- Swing pressing: eliminate tape dragging phenomenon. 5-post pressure rollers, 4 steel wheels + steel wheel glue clearing scraper device + 1 silicone wheel mode, pressing more obedient, quickly remove the glue stuck on the pressing wheel.
- Patented technology: HOLD patented Flat Scraping mechanism.
- Equipped with permanent magnet synchronous motor, higher efficiency, fast labelling response time, easy to match the high conveying speed, long term use, lower energy consumption.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Process
|
Technical parameter |
|
|
Lifting |
CNC lift |
|
Overall Dimensions |
About 8250x950x1800mm |
|
Feed Rate |
14-20-23m/min |
|
Edge Band Thickness |
0.4-1.2mm |
|
Board Thickness |
10-60mm |
|
Board Length |
≥120mm(Corner rounding On：≥300mm) |
|
Board Width |
≥40mm |
|
Operating Pressure |
0.6Mpa |
detail pictures
Horizontal Disc Scraping
HOLD patented: Flexible Flat Scraping
End cutting
Four-Blade High-Speed corner rounding
Buffing
Permanent Magnet Synchronous Motor for Conveying
