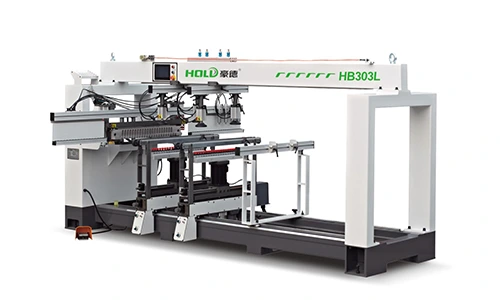

Automatic multi-row drill (triple-row drill) :HB303L
Feature:
● The frame adopts a gantry structure, providing robustness and stability.
● Both sides (bottom holes and side holes) can be processed simultaneously.
● Vertical double-row drilling unit, ensuring more stable drilling.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical parameter
|
Maximum processing width (X axis) |
2450mm |
|
Drill axis speed |
2800rpm (50Hz) |
|
Maximum horizontal drill axis spacing |
640mm |
|
Vertical drilling unit power |
1.5kw |
|
Minimum vertical drill axis spacing |
128mm |
|
Horizontal drilling unit power |
1.5kw |
|
Maximum workpiece thickness |
78mm |
|
Working air pressure |
0.6-0.8Mpa |
|
Maximum horizontal drilling depth |
40mm |
|
Machine dimensions |
3450*2500*1800mm |
|
Maximum vertical drilling depth |
70mm |
detail pictures
Drill unit distribution
Drilling unit
high-quality electrical components
